Expansion Valve Selection and Application: A Complete Guide for HVAC/R Professionals

The expansion valve is the most overlooked yet most critical component in any refrigeration or air conditioning system. Get it right, and your system runs efficiently for years. Get it wrong, and you face hunting, compressor flooding, capacity loss, and premature failures.

This guide covers everything you need to know about expansion valve selection and application—from the fundamental TXV vs. EEV decision to the precise formulas engineers use for sizing.

What Is an Expansion Valve and What Does It Do?

The expansion valve performs two essential functions in the refrigeration cycle: it reduces refrigerant pressure from the condensing side to the evaporating side, and it regulates refrigerant flow to match the evaporator's heat load.

Unlike fixed metering devices, thermostatic and electronic expansion valves actively adjust to changing conditions. They maintain a specific superheat value at the evaporator outlet—the margin of safety that ensures refrigerant arrives at the compressor as vapor, not liquid.

TXV vs. EEV: Choosing the Right Technology

Thermostatic Expansion Valves (TXV)

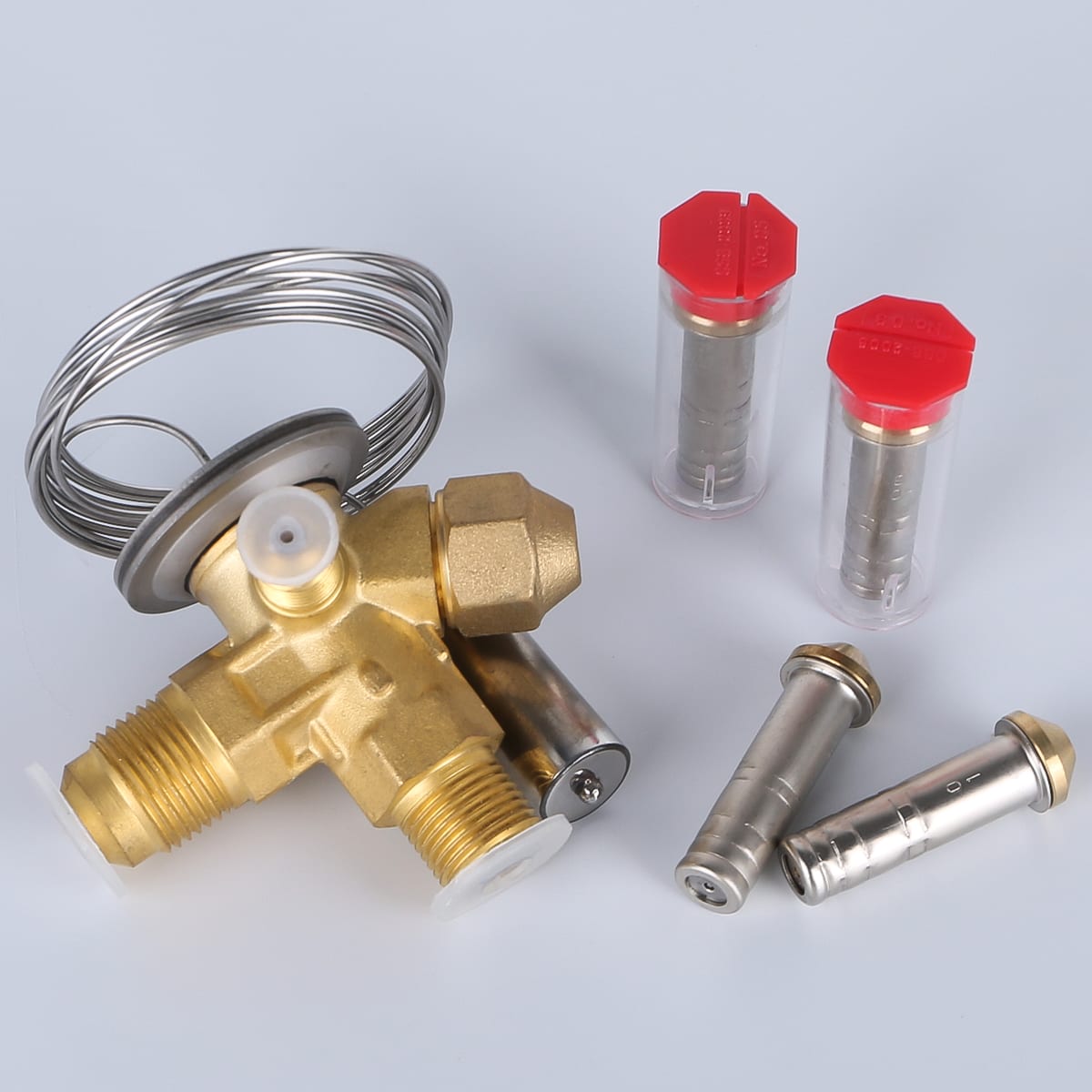

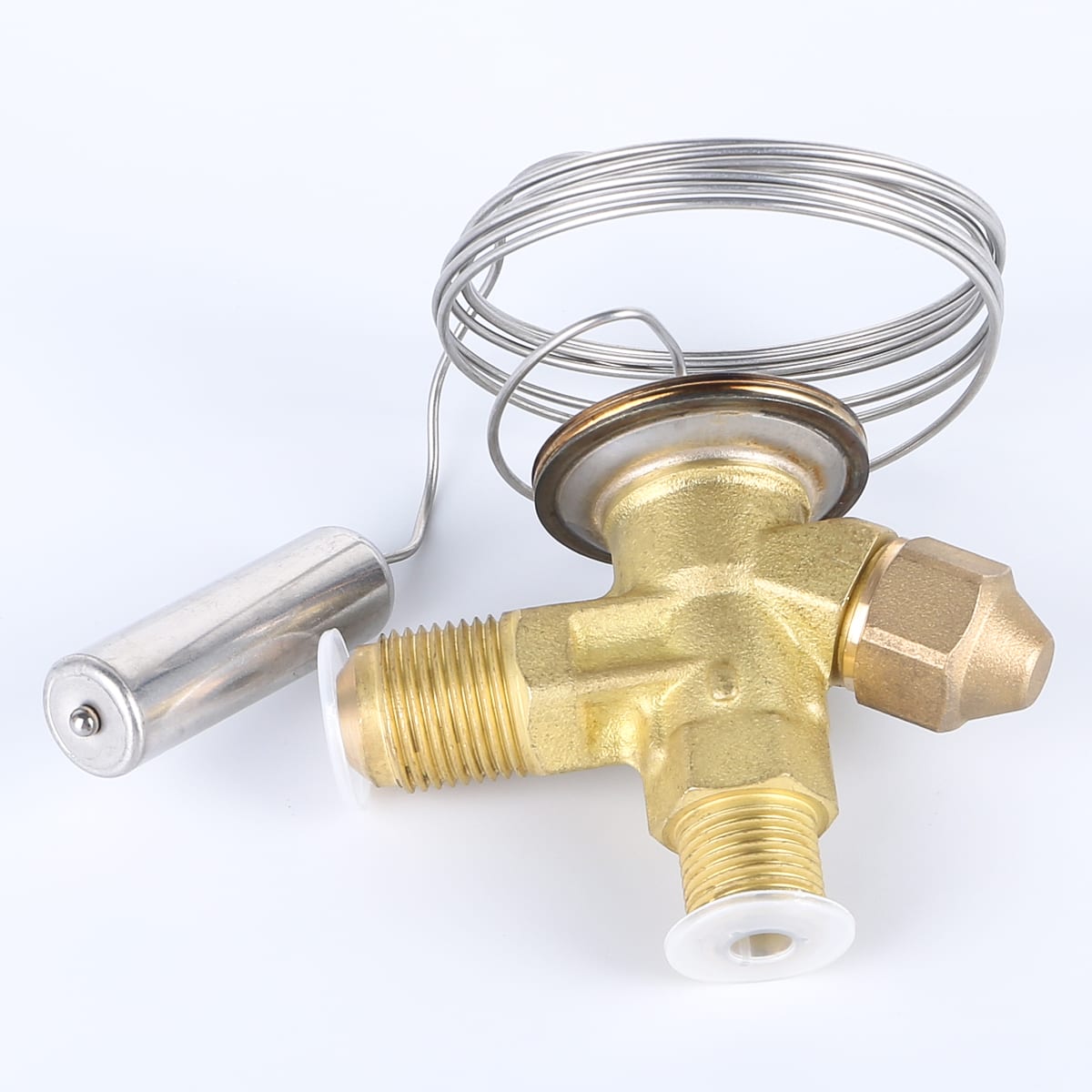

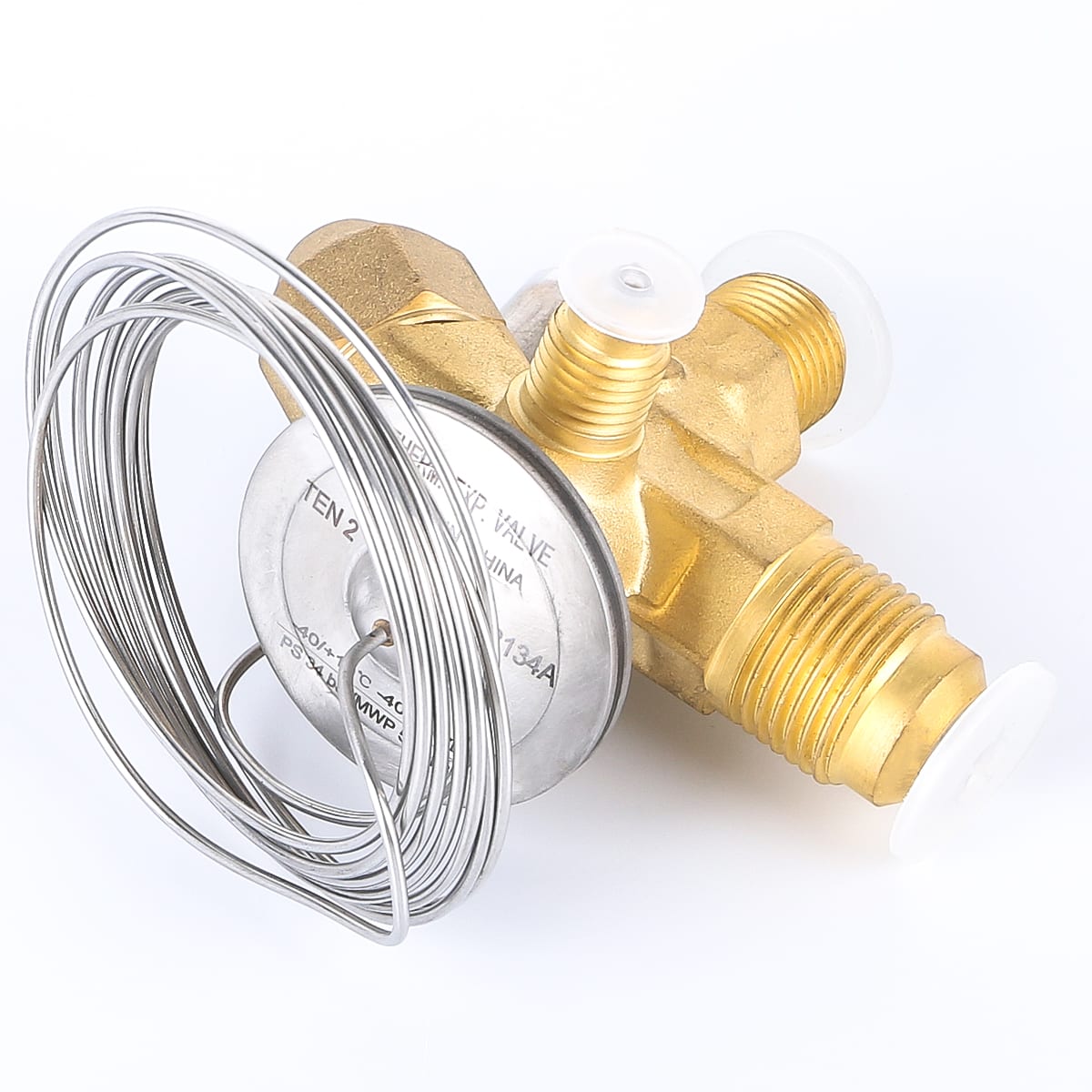

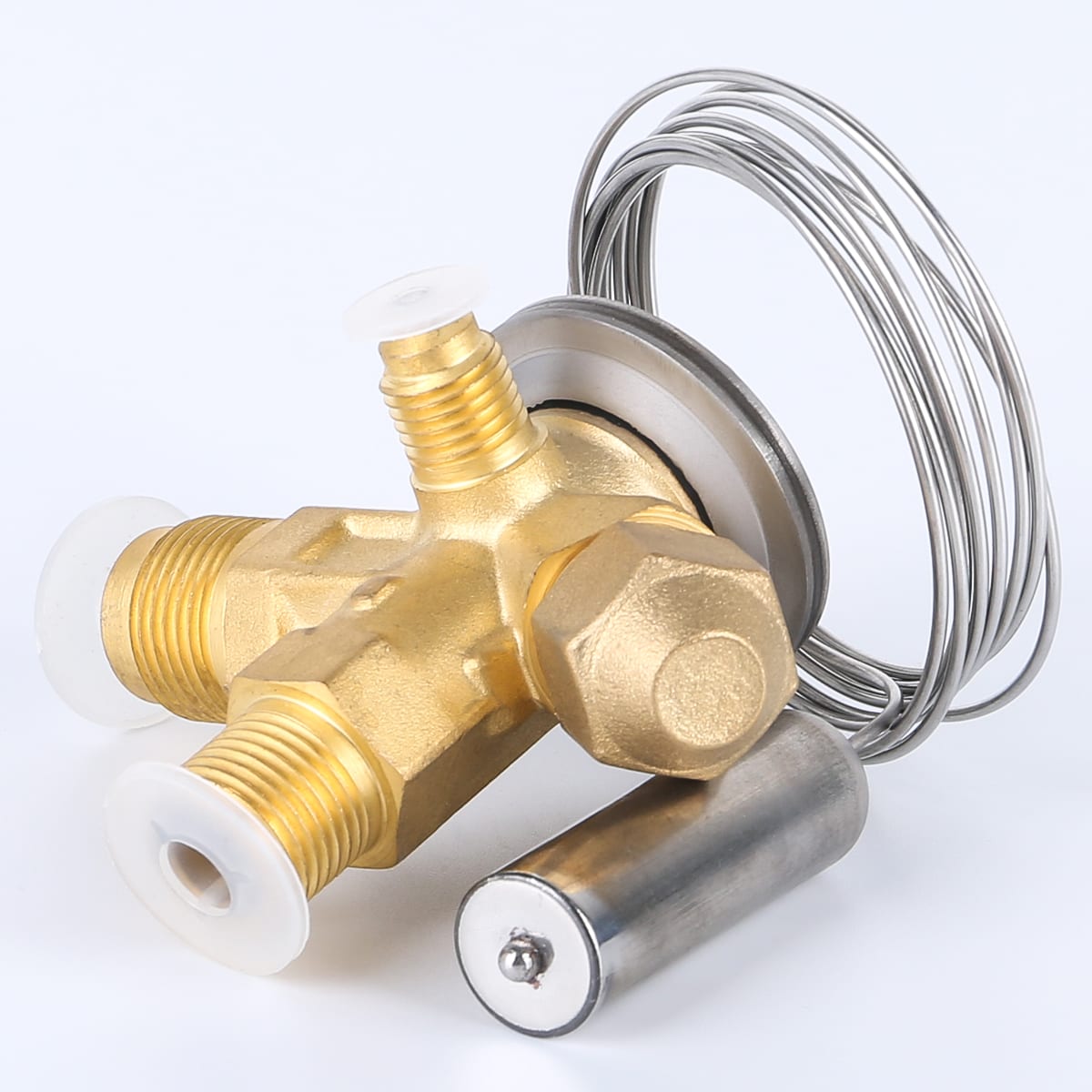

TXVs are purely mechanical devices. A sensing bulb charged with refrigerant mounts on the evaporator outlet suction line. As the temperature at the bulb changes, pressure inside the bulb shifts, moving a diaphragm that modulates the valve opening.

Strengths of TXVs:

TXVs require no electrical connection or external power supply. They are self-contained, cost-effective, and simple to install. A TXV can improve system efficiency by approximately 30% compared to a fixed orifice device, at a fraction of the cost of electronic alternatives.

Limitations of TXVs:

TXVs struggle with widely varying loads. When compressor capacity drops below roughly 50%, TXVs often become unstable and "hunt"—rapidly opening and closing in an attempt to maintain constant superheat. This causes fluctuating suction pressures, reduced evaporator efficiency, and unnecessary wear.

Electronic Expansion Valves (EEV)

EEVs use stepper motors or PWM-controlled solenoids to position the valve orifice with precision. A controller receives inputs from pressure and temperature sensors and modulates the valve accordingly.

Strengths of EEVs:

EEVs excel where TXVs fail. They maintain stable control across a much wider capacity range—often from 10% to 100% of rated capacity. This makes them ideal for variable-speed compressors, systems with highly variable loads, and applications requiring tight superheat control at low loads.

EEVs also enable significant energy savings by allowing operation at lower condensing pressures. Each 1°C reduction in condensing temperature yields roughly 2% improvement in efficiency. Annual energy savings of up to 25% are achievable in year-round cooling applications.

Limitations of EEVs:

EEVs require additional components: a controller, sensors, and wiring. The total installed cost is significantly higher than a TXV. For systems operating under relatively stable conditions, the efficiency gains may not justify the premium.

The Practical Decision

Choose a TXV when the system operates under stable to moderately varying loads, cost is a primary concern, or simplicity and serviceability matter most.

Choose an EEV when the system uses variable-speed or multi-stage compressors, loads vary widely (supermarkets, precision cooling, cleanrooms), or maximum energy efficiency is required.

How to Select an Expansion Valve: Step-by-Step

Step 1: Identify the Refrigerant

The valve must be compatible with the system refrigerant. For TXVs, the sensing bulb charge is specific to the refrigerant's pressure-temperature characteristics. R404A and R507 share similar properties and can use the same valve series, but R134a and R404A require different charges.

EEVs offer a major advantage here: a single valve often works across multiple refrigerants, simplifying inventory and reducing spare parts requirements.

Step 2: Determine the Required Capacity

Start with the evaporator's rated cooling capacity in kW or tons. This is your baseline. However, the valve's nominal capacity rating is stated under specific conditions—typically 38°C condensing, 4°C evaporating, with 1K subcooling and 3-4K superheat.

Step 3: Calculate the Pressure Difference

The pressure differential across the valve determines its flow capacity. Calculate:

ΔP = Condensing Pressure − Evaporating Pressure − Line Pressure Losses

Use the pressure drop columns in manufacturer selection tables to find the valve's capacity at your specific operating conditions.

Step 4: Apply Correction Factors for Subcooling

This step is where many selections go wrong. If liquid refrigerant enters the valve at a lower temperature (higher subcooling), it has greater density and requires less volume flow for the same mass flow. A valve selected for 4K subcooling will be oversized for a system with 40K subcooling.

The correction factor can be substantial. For R134a with 40K subcooling, the required capacity value is reduced by 30% (correction factor 1.42). Always apply the manufacturer's correction factors rather than selecting by nominal capacity alone.

Step 5: Check the Operating Range

Verify that the valve performs acceptably across the full range of expected operating conditions—not just the design point. For systems with capacity control (multiple compressors, unloaders, or inverters), evaluate performance at minimum load as well as maximum load.

A valve that is perfectly sized for full load may hunt violently at 25% load. For TXV applications, consider selecting slightly below maximum load to maintain stability at minimum conditions.

The Critical Role of Superheat

Superheat is the difference between the actual refrigerant temperature at the evaporator outlet and the saturated vapor temperature at that pressure. It is the TXV's control variable and the compressor's protection.

Superheat too low: Liquid refrigerant may reach the compressor, causing slugging, oil dilution, and catastrophic damage.

Superheat too high: The evaporator is starved, capacity drops, and discharge temperatures rise.

Typical settings range from 5K to 8K at the evaporator outlet. EEVs can safely operate at lower superheat values (2-4K) because their precise control reduces the risk of overshoot.

Common Problems and Solutions

TXV Hunting

Hunting manifests as cyclical fluctuations in superheat, suction pressure, and suction temperature. The valve repeatedly overshoots and undershoots its target.

Common causes:

Oversized valve: The most frequent culprit. A valve with excess capacity cannot modulate smoothly at low loads.

Poor bulb contact: The sensing bulb must be firmly strapped to a clean, straight section of suction line. Poor contact delays the temperature signal, causing control lag.

Incorrect bulb charge: Using a valve with the wrong refrigerant charge creates mismatched control characteristics.

Uneven evaporator loading: On multi-circuit coils, imbalanced refrigerant distribution can send false temperature signals to the bulb.

Valve Won't Feed Enough Refrigerant

Check for moisture freezing at the valve port—the expansion valve is the first cold spot in the system, making it vulnerable to ice blockage. A telltale sign is a sudden surge in flow when hot water is applied to the valve body. Install a new filter drier.

Also verify the liquid line sight glass shows a solid column of liquid. Flash gas entering the valve drastically reduces capacity and causes erratic operation.

CO₂ System Considerations

CO₂ systems present unique expansion valve challenges. The liquid line runs cold (often near 0°C), meaning ambient heat adds energy to the liquid rather than removing it. This creates flash gas that reduces valve capacity.

A 30% safety factor on valve capacity is a common rule of thumb for CO₂ systems to account for flash gas across the operating range.

Installation Best Practices

Sensing bulb placement (TXV): Mount the bulb on a horizontal suction line at the evaporator outlet. For lines 7/8" and larger, position at 4 or 8 o'clock. Avoid the bottom of the line where oil may pool and insulate the bulb from true refrigerant temperature.

Equalizer connection: For externally equalized valves, connect the equalizer line downstream of the sensing bulb, several inches away to avoid turbulence effects.

Flow direction: Verify the arrow on the valve body matches actual refrigerant flow. Many valve failures trace back to reversed installation.

Strainer protection: Always install a filter drier upstream of the expansion valve. The small orifice is vulnerable to debris, copper oxide, and sludge.

Key Takeaways

Expansion valve selection is not a "set and forget" exercise. The right choice depends on the application's load profile, refrigerant, operating conditions, and budget.

TXVs remain the workhorse for stable-load systems where simplicity and cost matter. EEVs dominate where precision, wide modulation range, and energy efficiency justify the higher cost.

Regardless of technology, the fundamentals remain: size for actual conditions (not nominal ratings), apply subcooling corrections, verify performance across the full operating range, and install correctly. Get these right, and the expansion valve does its job silently—regulating flow, protecting the compressor, and maximizing system efficiency.
