Liquid Receiver Selection and Application: A Complete Guide for HVAC/R Engineers

The liquid receiver is the unsung hero of the refrigeration system. It sits quietly on the liquid line, storing excess refrigerant, ensuring a solid column of liquid reaches the expansion valve, and making pump-down maintenance possible.

But size it wrong, and you face flashing at the TXV, compressor flooding, or worse—a system that can't be safely serviced.

This guide covers the fundamentals of liquid receiver selection and application, from understanding its role to calculating the right volume for your system.

What Does a Liquid Receiver Do?

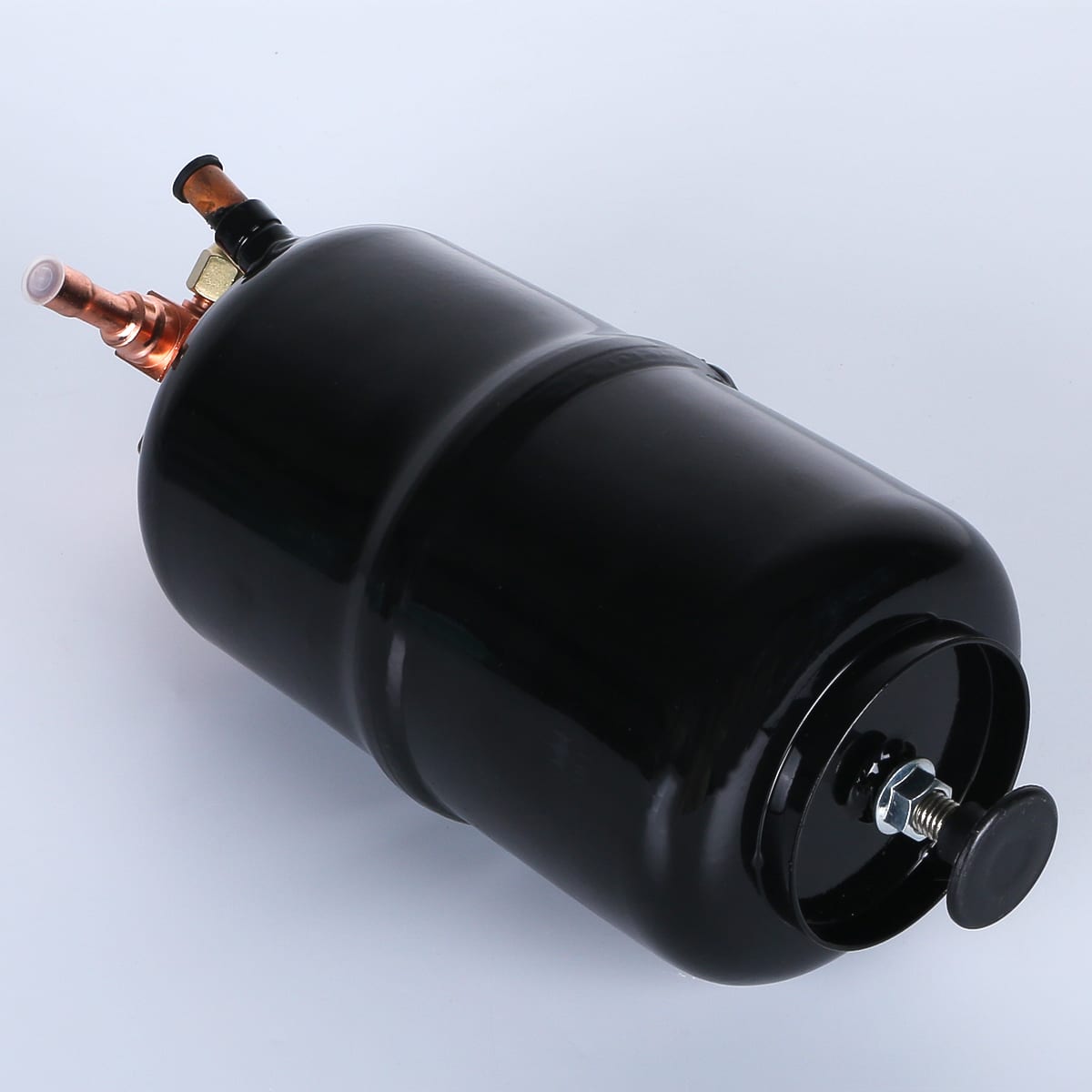

A liquid receiver is a pressure vessel installed on the high-pressure liquid line, typically between the condenser and the expansion valve. Its primary function is to store excess liquid refrigerant that is not currently circulating through the system.

The receiver performs several critical roles:

Provides liquid seal for the expansion valve. The TXV or EEV requires a solid, bubble-free column of liquid refrigerant to function properly. If vapor enters the valve, its capacity drops dramatically, starving the evaporator and causing poor cooling performance.

Stores refrigerant for varying loads. In systems with fluctuating heat loads—supermarket refrigeration, for example—the amount of refrigerant actively circulating changes. The receiver acts as a buffer, absorbing excess during low-load periods and supplying additional refrigerant during high-load periods.

Enables pump-down maintenance. For servicing, a valve at the receiver outlet allows the technician to pump the entire system charge into the receiver. This isolates the refrigerant, making it safe to open the low side for repairs.

Accommodates refrigerant migration. During off-cycles, refrigerant can migrate to the coldest part of the system. A properly sized receiver provides storage capacity to prevent overpressurization during non-operating periods.

Receiver vs. Accumulator: Don't Confuse Them

These two components are frequently mistaken for each other, but they serve opposite functions and operate on different sides of the system.

A receiver sits on the high side (liquid line, after the condenser) and stores excess liquid refrigerant to ensure a steady supply to the expansion valve.

An accumulator sits on the low side (suction line, before the compressor) and collects any liquid refrigerant that failed to evaporate, preventing it from reaching the compressor and causing slugging damage.

One stores liquid to feed the system. The other traps liquid to protect the compressor. The receiver's outlet is designed to maintain a liquid seal. The accumulator's outlet is designed to return only vapor (plus metered oil) to the compressor.

When Is a Receiver Required?

Not every refrigeration system needs a separate receiver.

Systems that may not require a receiver: Small package systems using capillary tubes for refrigerant feed often have very small charges and relatively constant loads. If the condenser has enough internal volume to store the charge, a separate receiver is unnecessary. Water-cooled units with shell-and-tube condensers commonly omit the receiver for this reason.

Systems that require a receiver: Practically all air-cooled units equipped with expansion valves require a separate receiver. Systems with fluctuating loads, long line sets, or those using condenser flooding for low-ambient operation also demand a receiver with sufficient capacity.

If your system needs to be pumped down for service, a receiver is essential.

How to Size a Liquid Receiver

Sizing a receiver is not about matching it to system capacity in kW or tons. It's about volume—specifically, the volume required to store the entire system refrigerant charge as a liquid under maximum storage conditions.

Step 1: Determine the Total System Charge

The total refrigerant charge is the sum of the operating charges for all system components:

Evaporator

Suction, liquid, and discharge lines

Condenser

Receiver itself

For systems using condenser flooding for low-ambient control, additional charge must be added to account for the refrigerant that will flood the condenser during cold weather operation.

Step 2: Apply a Safety Margin

Industry practice calls for the receiver's pump-down capacity to exceed the total system charge by 10% to 15%. This margin ensures the receiver can hold the entire charge without overfilling, providing space for liquid expansion and accounting for minor calculation inaccuracies.

A 2020 design study applied a 50% safety factor to the calculated liquid volume, demonstrating that conservative sizing remains common practice.

Step 3: Calculate Required Volume

The minimum receiver volume is calculated from the mass of refrigerant to be stored and the density of liquid refrigerant at maximum storage conditions:

V = m / ρ

Where:

V = required volume

m = mass of refrigerant (system charge)

ρ = liquid refrigerant density at maximum storage temperature

For systems with low-critical-temperature refrigerants like CO₂, the calculation becomes more complex. Maximum storage pressure becomes a limiting factor, and the receiver must be sized to prevent overpressurization when the system is off and the refrigerant warms to ambient temperature.

CO₂ systems typically have maximum storage pressures between 1000 and 2500 psi, and the receiver volume must account for the refrigerant's high density at these conditions.

Step 4: Apply Refrigerant-Specific Correction Factors

Manufacturers often provide receiver selection graphs based on R22 or a reference refrigerant. When using these graphs for other refrigerants, correction factors apply. For example, one manufacturer's data shows:

R134a: factor = 1.1

R22: factor = 1.0

R404A/R507A: factor = 1.4

These factors account for differences in liquid density between refrigerants.

Step 5: Consider Minimum Liquid Level

The receiver outlet must be positioned to maintain a liquid seal even when the liquid level is at its lowest. The minimum required liquid level above the outlet port depends on the outlet configuration and the flow rate. A simple expression for evaluating this minimum level is available in IIR literature on receiver design.

If the outlet is at the top or side of the receiver, a dip tube extending to approximately half an inch from the bottom ensures liquid—not vapor—leaves the receiver.

Receiver Configuration Options

Through-Type vs. Surge-Type

Through-type receivers are connected directly in the liquid line. All refrigerant flows through the receiver. This is the most common configuration for smaller systems.

Surge-type receivers allow refrigerant to enter and exit without passing through the entire volume. This design can minimize refrigerant charge and is preferred in some large industrial systems.

Vertical vs. Horizontal

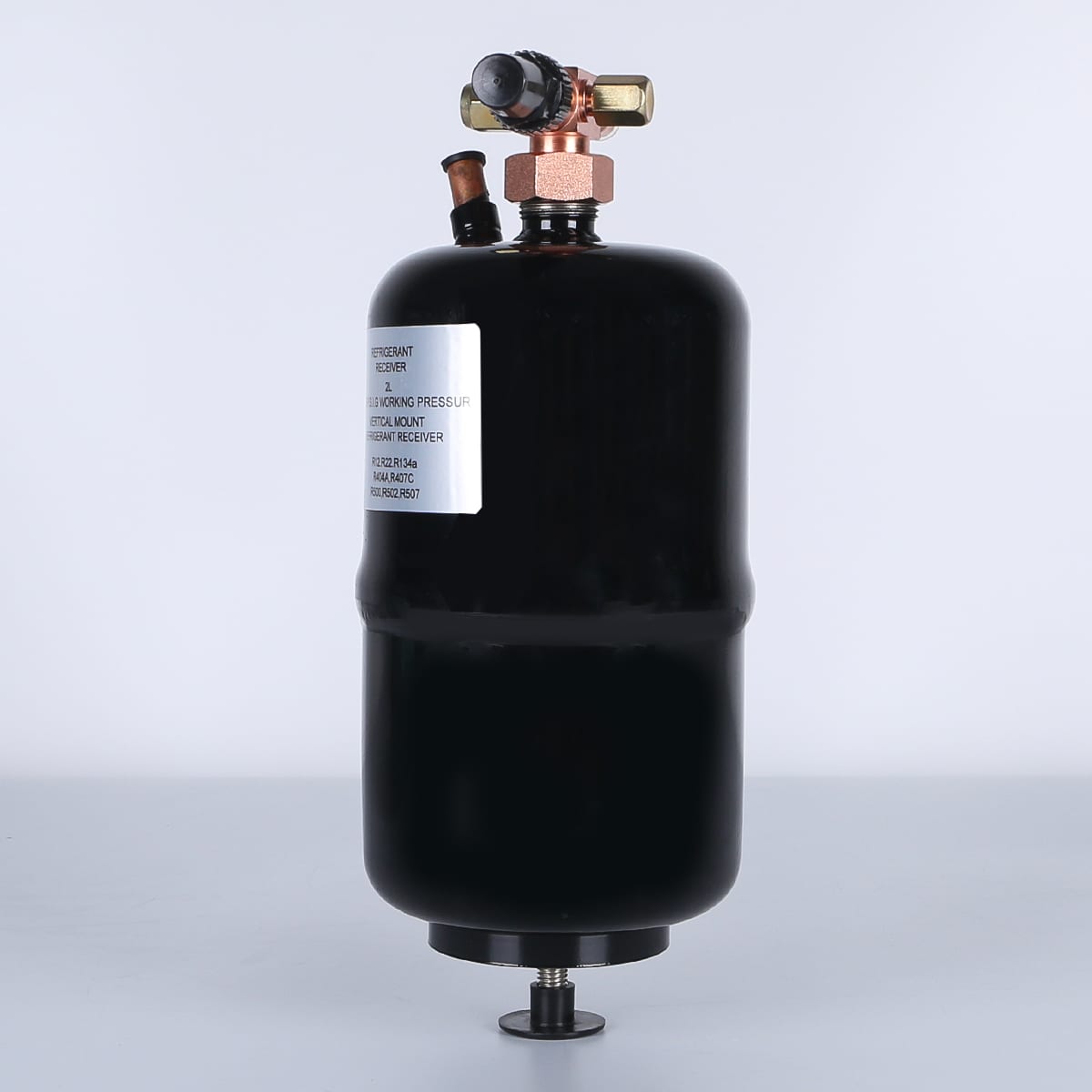

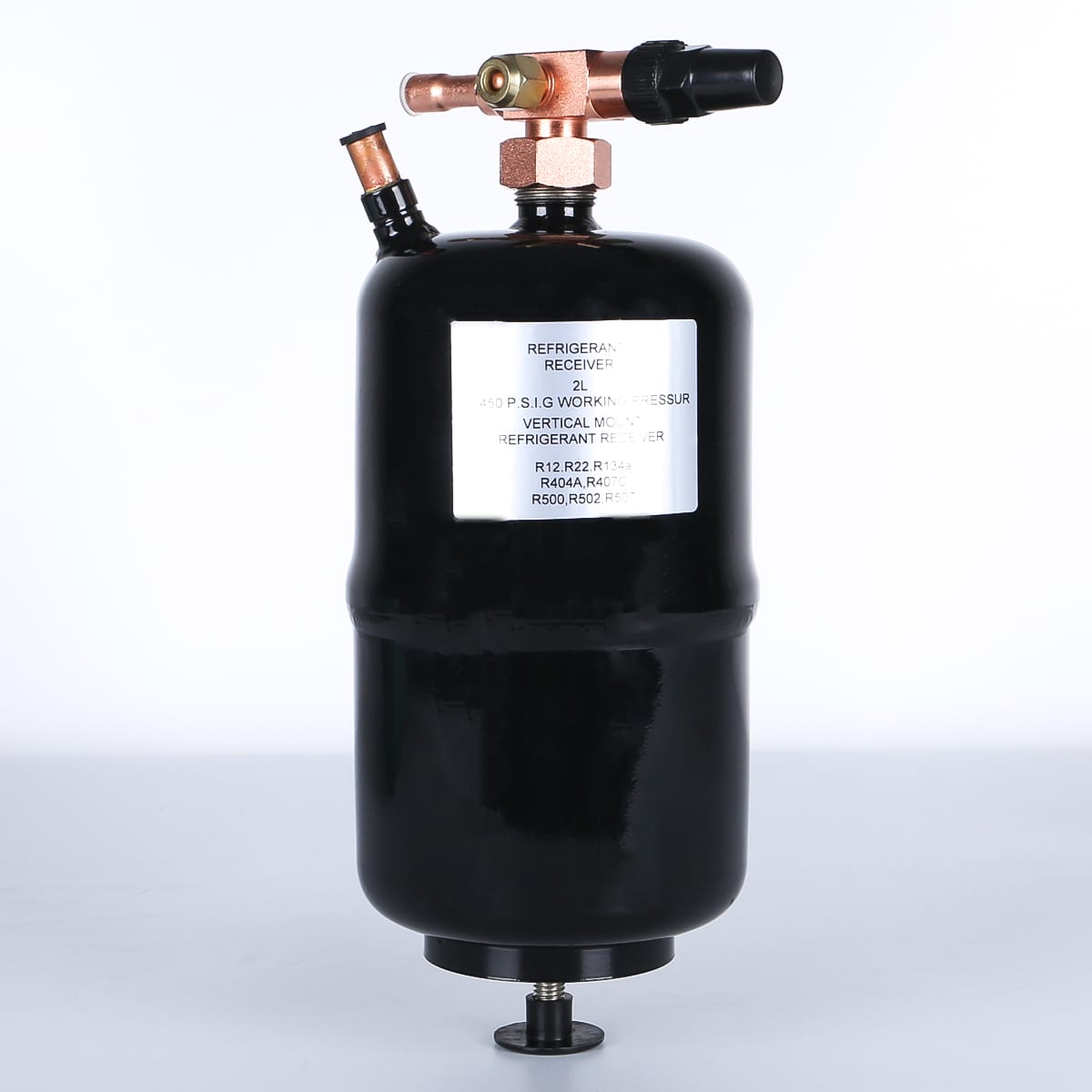

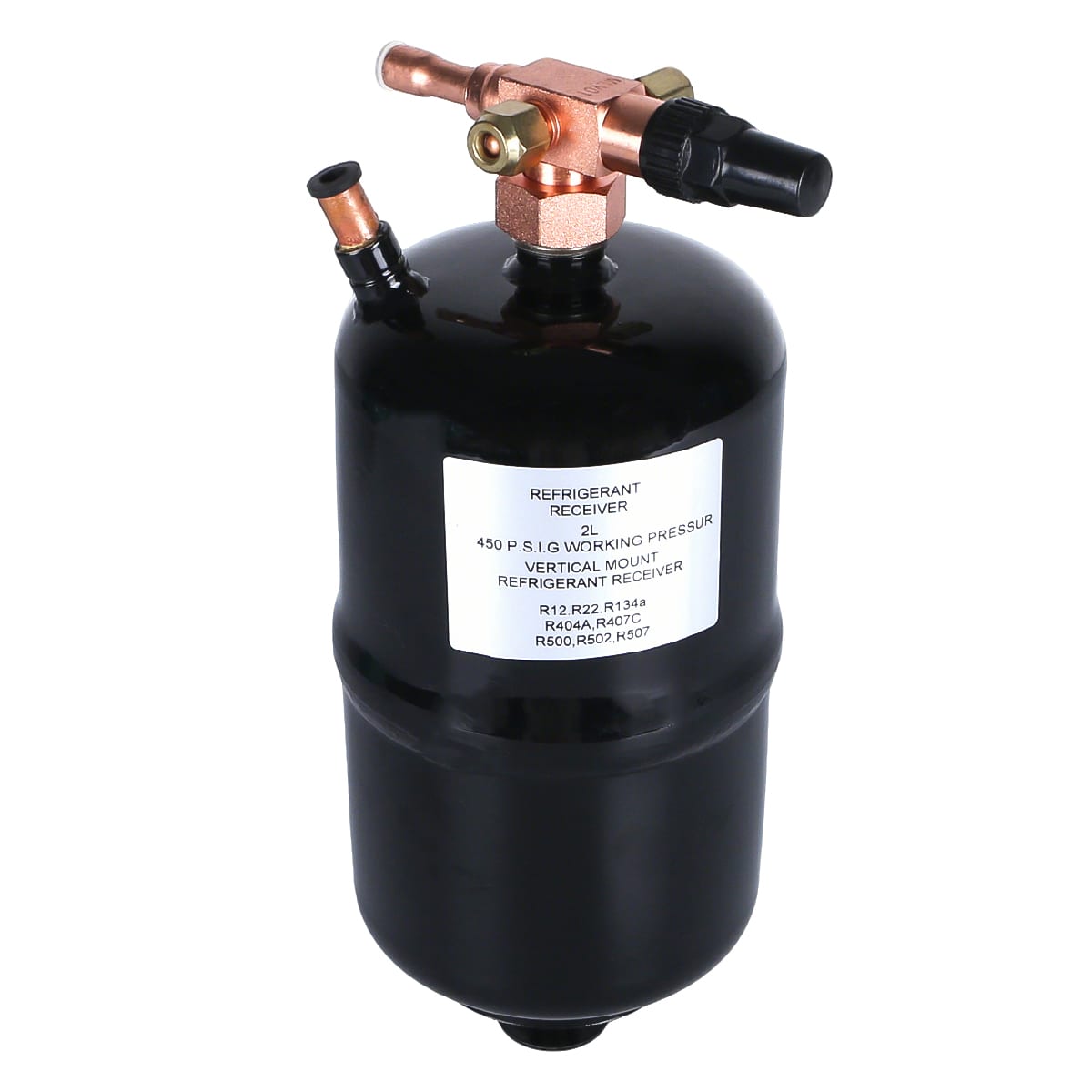

Vertical receivers are more common for smaller capacities. Horizontal receivers may be preferred when height is limited or when the system design calls for a lower profile.

Outlet Configuration

The receiver outlet must be designed to maintain a liquid seal. Common configurations include:

Bottom outlet with an internal dip tube

Top outlet with a dip tube extending to near the bottom

Side outlet with a dip tube

A valve at the receiver outlet is required for pump-down operations.

Special Considerations for CO₂ Systems

Transcritical CO₂ systems present unique receiver challenges.

CO₂ has a low critical temperature (31°C), meaning it exists as a supercritical fluid at typical ambient conditions in warm climates. The receiver in a CO₂ system often functions differently than in traditional systems—it may operate as a high-pressure vessel that manages the transition between supercritical and subcritical states.

Research on CO₂ systems shows that receiver design significantly impacts charge optimization and system performance. For two-stage expansion systems, there exists a range of refrigerant charge over which the liquid portion in the receiver remains stable, providing operational flexibility.

CO₂ receivers must be rated for much higher pressures than conventional receivers. Selection tables for CO₂ components specify maximum operating pressures of 45 bar, 100 bar, or higher depending on the system architecture.

Installation Best Practices

Location matters for low-ambient operation. When condenser flooding valves are used for low-ambient control, the receiver should be located indoors in a warm area. If installed outdoors, it must be insulated and heated with a thermostatically controlled heater set to 60°F to 65°F. The heater should be wired in parallel with the compressor crankcase heater so it operates only during compressor off-cycles.

Provide pressure relief. Receivers should be equipped with a pressure relief valve or fusible plug to prevent overpressurization. The relief device must be sized appropriately and vented to a safe location.

Ensure proper liquid level indication. A sight glass installed in the liquid line just after the receiver allows technicians to verify that a solid column of liquid is leaving the receiver. Bubbles in the sight glass may indicate undercharge, but other causes—such as a wide-open TXV during pull-down, a cycling condenser pressure regulator, or mixed refrigerants—should be ruled out before adding charge.

Support the vessel properly. Receivers are pressure vessels and must be mounted securely. Vibration isolation may be required in some installations.

Common Mistakes in Receiver Selection

Undersizing for pump-down capacity. The most common error. If the receiver cannot hold the entire system charge, pump-down is impossible, and the system cannot be safely serviced.

Ignoring low-ambient charge requirements. Systems using condenser flooding need additional receiver capacity to hold the extra refrigerant required for cold-weather operation. Failing to account for this results in overpressurization or inability to pump down.

Forgetting the liquid seal. An outlet positioned too high, or without a dip tube, allows vapor to leave the receiver and enter the liquid line, causing flashing at the expansion valve.

Sizing only for summer conditions. The receiver must be sized for the worst-case storage condition—typically maximum ambient temperature with the system off. This is when the refrigerant is densest and the receiver is most full.

Key Takeaways

The liquid receiver is not a passive component. It is the system's refrigerant reservoir, the expansion valve's liquid supplier, and the technician's maintenance enabler.

Size it based on total system charge, not system capacity. Apply a 10-15% safety margin. Account for refrigerant-specific density corrections. Ensure the outlet maintains a liquid seal. And for CO₂ systems, respect the higher pressures and unique thermodynamic behavior.

Get the receiver right, and the rest of the system—from expansion valve to compressor—runs more reliably and efficiently.
